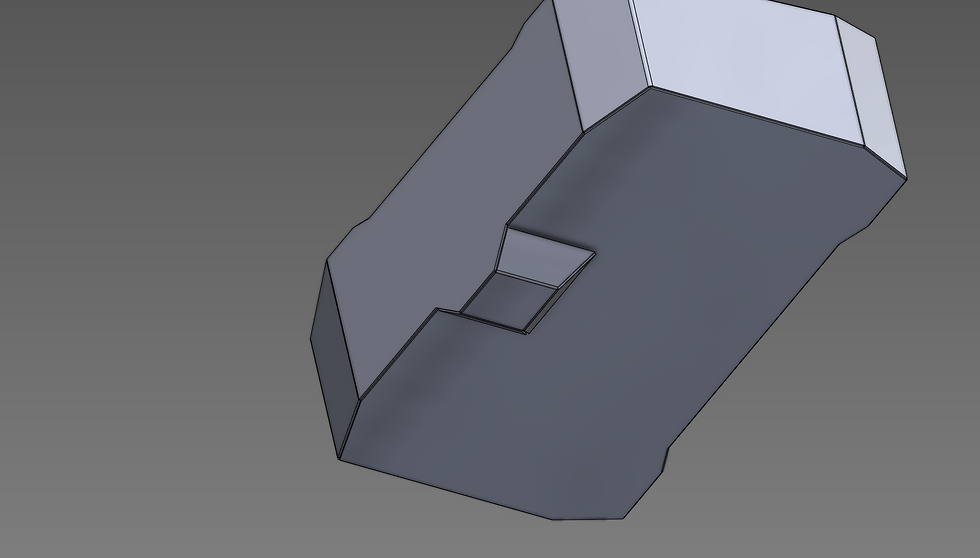

Pro-Series Fuel Cell - Expedition 110L Low-Profile L1190 x W700 x H150

The Expedition 110L Pro- Series fuel cell is designed to increase peace of mind and eliminate fuel anxiety, without compromising style. Featuring a massive 110L capacity available in two different shape configurations for custom applications.

• Interlocking Tab-and-Slot Design: The outer shell and internal plates self-align seamlessly to ensure perfect square alignment and minimize setup time before welding.

• Integrated Anti-Slosh Baffling: Internal rigid baffle skeletons eliminate fuel movement during hard cornering or steep climbs while providing major structural bracing to the tank walls.

• Standardized Hardware Interfaces: Designed to accommodate out 3-bay mounting flange. Making this fuel cell compatible with a huge range of industry leady hardware and accessories.

• Comprehensive Digital Package: Includes clean, production 2D DXF flat patterns, 3D STEP models for vehicle assembly test-fitting, and dimensioned PDF folding blueprints with precise bend angles.

Specifications

• Material Compatibility: Optimized for 3.0mm (1/8") aluminum sheet stock

• File Formats Included: DXF (2D Flat Pattern), STEP (3D Solid Model), PDF (Bending Blueprint)

• Design Features: Integrated internal baffle skeleton, pre-calculated bend allowances

• Footprint Styles: Low-Profile, Vertical
